MICROHARDNESS TESTERFM-810/FM-310/FM-110Series

FM-810

Lab-friendly functions make FM Series Microhardness Testers ideal for materials labs.

FM-810e & FM-810 make precise Vickers (HV) / Knoop (HK) / Brinell (HB) / Fracture Toughness (Kc) measurements quick and easy.
- One touch selection on touchpad -

Load range and test method

  • 1gf

    2000gf

VICKERS

KNOOP

MODEL LINEUP

  • FM-810

    FM-810

  • FM-310

    FM-310

  • FM-110

    FM-110

OUTSTANDING FEATURES

  • USB port output
  • Equipped with the cylindrical/spherical offset function and the specimen thickness calculation function.

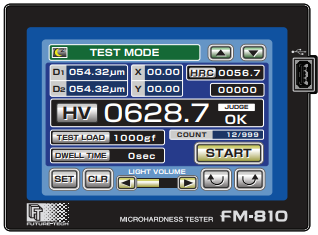

  • ADVANCED COLOR LCD TOUCH PANEL OPERATION AND DISPLAY
    • Color LCD touch panel/display coordinated with highly integrated PC board.
    • Measuring procedures, conditions and data are displayed clearly. (FM-810 Series)
  • BRINELL TESTING
    • Accurate light load Brinell Testing is available as a standard function.
      Necessary additional optional item “Ball Indenter φ1mm”. (FM-810 Series)
  • FRACTURE TOUGHNESS TESTING, Kc
    • Kc value can be measured as a standard function according to JIS R1607/IF Method.
    • Together with the value of Micro Vickers and Knoop,
      it is very effective to evaluate the quality of new material. (FM-810 Series)
  • CLEAR VIEW AND EASY MEASURING
    • The changeable aperture diaphragm and field aperture with a newly developed light source mechanism provides more resolution at both high and low magnifications.
    • Easily changeable color filter provides more resolution. (All Series)
  • A VARIETY OF SELECTABLE LOADS
    • Type of test load is selectable.
    • You can select from an abundance of loads and have own load combination(Option/Negotiable)
  • X-Y COORDINATE DISPLAY
    • Stage coordinate is indicated on the display in a link operation with the digital microhead (option).
  • 4 OBJECT LENSES (OPTIONAL)
    • The new turret mechanism enables to observe wide specimen area with up to 4 object lenses.
    • Various magnifications easily available by rotating the correct objective into position.
    • Placement of an indentation and its reading is more accurate and repeatable by choice of proper objective.(FM-810 Series)
  • 2 INDENTERS FOR HV/HK MEASUREMENTS (OPTIONAL)
    • The new turret mechanism enables to adapt 2 indenters simultaneously.
    • It allows Vickers and Knoop tests without replacing the indenter. (FM-810 Series)
FM-810

FM-810

FM-310

FM-310

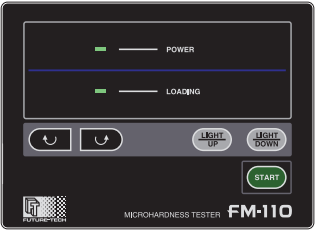

FM-110

FM-110

CYLINDRICAL/SPHERICAL OFFSET

CYLINDRICAL/SPHERICAL OFFSET

SPECIMEN THICKNESS CALCULATION

SPECIMEN THICKNESS CALCULATION

HARDENED LAYER DEPTH CALCULATION

HARDENED LAYER DEPTH CALCULATION

SPECIFICATIONS

MODEL FM-110e FM-110 FM-310e FM-310 FM-810e FM-810
LOADING MECHANISM Automatic Load and Release Method
LOAD APPLYING SPEED 60μm / sec
DIAMOND INDENTER Standard Vickers Indenter (HV)
Option Knoop Indenter (HK) / Two Indenters (HV+HK) are available on the special Dual Indenter Turret simultaneously
OBJECT LENS Standard 2 Lenses ( X 50 & X 10)
Option Max. 3 Lenses
( X 50 & X 10 plus 1 Lenses)
Max. 4 Lenses
( X 50 & X 10 plus 2 Lenses)
EYEPIECE X10
LIGHT SOURCE LED
DIMENSIONS W186 x D450 x H504mm
WEIGHT Approx. 40 kg (Including Standard Accessories)
POWER SUPPLY Japan : Single phase AC 100V 50/ 60Hz
Overseas : Single phase AC100~240V 50/ 60Hz(Should be specified before shipment)

Please see the catalog for details of the specifications.
