ROCKWELL HARDNESS TESTER FR-X1, FR-X2, FR-X3 /
FR-X1L, FR-X2L, FR-X3L Series
Obtained the supreme precision and overwhelming
reliability by the adoption of entirely new designing and precision manufacturing with no compromise!
Load range and test method
ROCKWELL
MODEL LINEUP
-
FR-X1
-
FR-X2
-
FR-X3
-
FR-X1L
-
FR-X2L
-
FR-X3L
OUTSTANDING FEATURES
- EMPHASIZED HIGH PRECISION
- Reviewed the popular FR-e series and achieved the supreme precision.
- STRENGTHENED BODY
- Achieved the remarkable improvement of hardness measurement by the adoption of newly designed strong body.Prepared the maximum stroke of specimen of 255mm and long type of 401mm.
(from the horizontal anvil to X3 and X3L)
- Achieved the remarkable improvement of hardness measurement by the adoption of newly designed strong body.Prepared the maximum stroke of specimen of 255mm and long type of 401mm.
- STABLE LOADING AXIS MECHANISM
- Adopted highly sensitive load shaft to prevent the side shift by the introduction of ball guide at the top and bottom.
The stable measurement of hardness has become possible for the cylindrical and spherical surface.
- Adopted highly sensitive load shaft to prevent the side shift by the introduction of ball guide at the top and bottom.
- STANDARD COMPENSATION FUNCTION
- Low, middle, high compensation of multiple points to meet the each standard.
Obtain the test result which is comply with the different standard for all hardness range.
- Low, middle, high compensation of multiple points to meet the each standard.
- SHAPE COMPENSATION FUNCTION
- Obtain the test result which is comply with the standard by entering the diameter of spherical surface & cylindrical specimen.

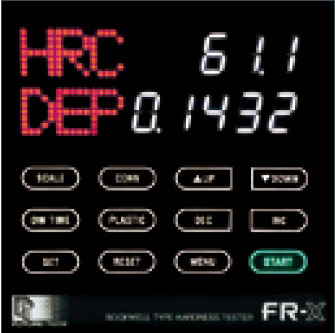

- DISPLAY OF MAX.DEPTH OF INDENTER
- Display the max.depth of indenter together with test result.
Be able to evaluate the elastic amount of different sample in hardness value.
- Display the max.depth of indenter together with test result.
- STEALTH TYPE DOUBLE INFORMATION PANEL
- Display the various information of OK / NO judgement and conversion and at the same time,display the measurement results.(Load and release of the test load, and hardness indication are automatic)
- FUNCTION OF DATA JUDGEMENT
- Display the judgement of measurement data (HI, OK, LO), if you set the maximum value and minimum one and the mean value, if you set measurement point on the sub-information panel.
- LED LIGHT
- Obtained the supreme visibility of specimen in the dark environment and achieved the minute positioning.
- USB DATA OUTPUT
- USB (B2.0) connector is equipped. USB data can be transferred to PC.(Option)
Capable in compliance with all ASTM (E-140), SAE (J-417b).
- USB (B2.0) connector is equipped. USB data can be transferred to PC.(Option)
SPECIFICATIONS
MODEL | FR-X1 | FR-X2 | FR-X3 | FR-X1L | FR-X2L | FR-X3L |
---|---|---|---|---|---|---|
MINOR LOAD POSITION SETTING | Automatic setting (Electronic sound monitoring) | |||||
LOAD CONTROL | Automatic (Application-holding-release) | |||||
LOAD REQUIRED TIME | 1-8 sec (Constant speed) | |||||
MAX.SPECIMEN HEIGHT (WITHOUT LEAD SCREW COVER) |
255mm | 221mm | 435mm | 401mm | ||
MAX.SPECIMEN DEPTH | 165mm | 165mm | ||||
DIMENSIONS | W196×D487×H820mm | W196×D487×H965mm | ||||
WEIGHT | 82kg | 80kg | 83kg | 87kg | 85kg | 88kg |
POWER SUPPLY | Single phase AC 100V, 50 / 60Hz in Japan and AC 100 ~ 240V, 50 / 60Hz available for Export Model.(Select when ordering) |
Please see the catalog for details of the specifications.
