VICKERS HARDNESS TESTER FV-810/FV-310/FV-110Series

FV-810

Lab-friendly functions make FV Series Vickers Hardness Testers ideal for materials labs.

FV-800 Series make precise Vickers (HV) / Knoop (HK) / Brinell (HB) / Fracture Toughness (Kc) measurements quick and easy.
- One touch selection on touch panel -

Load range and test method

  • 0.3kgf

    50kgf

VICKERS

MODEL LINEUP

  • FV-810

    FV-810

  • FV-310

    FV-310

  • FV-110

    FV-110

OUTSTANDING FEATURES

  • USB port output
  • Equipped with the cylindrical/spherical offset function and the specimen thickness calculation function.
  • ADVANCED TOUCH PANEL OPERATION AND DISPLAY
    • Clean Touch Panel coordinated with highly integrated PC board.
    • Measuring procedures, conditions and data are displayed clearly. (FV-810 Series)
  • BRINELL TEST
    • Accurate light load Brinell Test is available as a standard function.Necessary additional optional item “Ball Indenter φ1~5mm”. (FV-810 Series)
  • FRACTURE TOUGHNESS TEST, Kc
    • Kc value can be measured as a standard function according to JIS R1607 / IF Method.
    • Together with the value of Vickers and Knoop, it is very effective to evaluate the quality of new material. (FV-810 Series)
  • CLEAR VIEW AND EASY MEASUREMENT
    • The changeable aperture diaphragm and field aperture with a newly developed light source mechanism provides more resolution at both high and low magnifications.
    • Easily changeable color filter provides more resolution. (All series)
  • 4 OBJECT LENSES (OPTIONAL)
    • The new turret mechanism enables to observe wide specimen area with up to 4 object lenses.
    • Various magnifications easily available by rotating the correct objective into position.
    • Placement of an indentation and its reading is more accurate and repeatable by choice of proper objective. (FV-810 Series)
  • 2 INDENTERS FOR HV/HK MEASUREMENTS (OPTIONAL)
    • The new turret mechanism enables to adapt 2 indenters simultaneously.
    • It allows Vickers and Knoop tests without replacing the indenter. (FV-810 Series)
HV

HV

HK

HK

HBW

HBW

Kc

KC

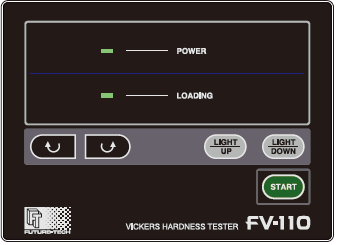

FV-110Series

FV-110 Series

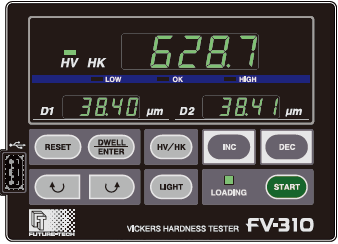

FV-310Series

FV-310 Series

CYLINDRICAL/SPHERICAL OFFSET

CYLINDRICAL/SPHERICAL OFFSET

SPECIMEN THICKNESS CALCULATION

SPECIMEN THICKNESS CALCULATION

HARDENED LAYER DEPTH CALCULATION

HARDENED LAYER DEPTH CALCULATION

SPECIFICATIONS

MODEL FV-110e FV-110 FV-310e FV-310 FV-810e FV-810
LOADING MECHANISM Automatic Load and Release Method
TURRET MECHANISM Manual Automatic Manual Automatic Manual Automatic
DIAMOND INDENTER(Standard) Vickers Indenter (HV)
MAX. HEIGHT OF SPECIMEN 210mm
MAX. DEPTH OF SPECIMEN 165mm
DIMENSIONS W215x D517 x H690 mm
WEIGHT Approx. 55 kg (Including Standard Accessories)
POWER SUPPLY Japan : Single phase AC100V 50/ 60Hz
Overseas : Single phase AC100 ~ 240V 50/ 60Hz (Should be specified before shipment)

Please see the catalog for details of the specifications.
