VARIOUS TYPE OF AUTOMATIC HARDNESS TESTING SYSTEMFULLY-AUTOMATIC JOMINY HARDNESS TESTING SYSTEM
It is possible to convey the Jominy test piece automatically to hardness tester by conveyance arm device.
- 1Set the Jominy test piece on the table.
- 2Input the measuring condition into control PC.
- 3The Jominy test piece is conveyed by robot arm and set on the hardness tester.
- 4After measuring, the Jominy test piece is reversed by robot arm and set on the auto stage.
- 5After measuring of reverse face, test piece is carried back by robot arm automatically and removed by discharge arm.
- 6The data is transferred automatically to host computer from the control computer after all operation has been completed.
The system performs jominy test automatically.
All the operator has to do is set the test piece on the auto stage and input the standardized number of the measurement into the PC.
Test piece can be set on the auto stage easily.
The hardness value and other results are taken into the PC after completing the measurement, hence it is possible to have graph display and print out the test report.

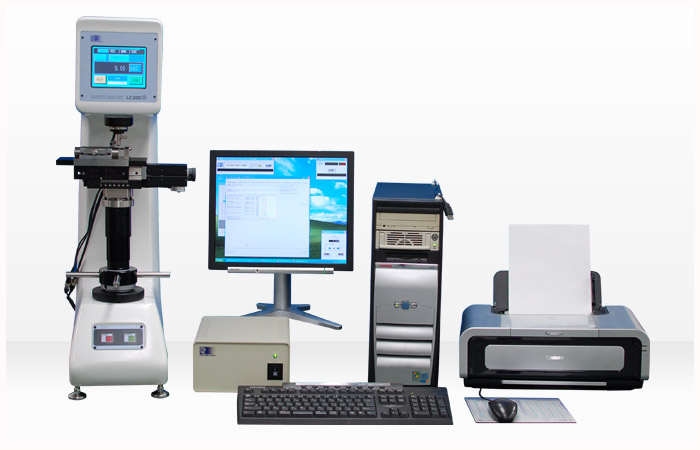

・Fully-automatic load-cell system Rockwell type hardness tester LC-200R

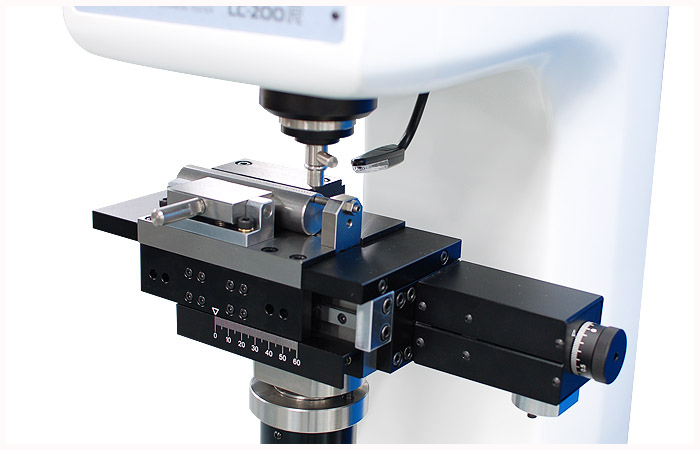

・Automatic stage for Jominy Test
・Stage control box
・System control PC and software
